Firmware Upgrade Procedure for High Availability Router Pair Through InControl

For High Availability firmware upgrade procedures with the Web-Admin please click here.

This procedure will minimize the downtime associated with a firmware upgrade through InControl on a high availability router pair.

Step 1: Upgrade the slave router firmware.

  • Access the Slave router “Firmware Management” area from the device level within IC2.

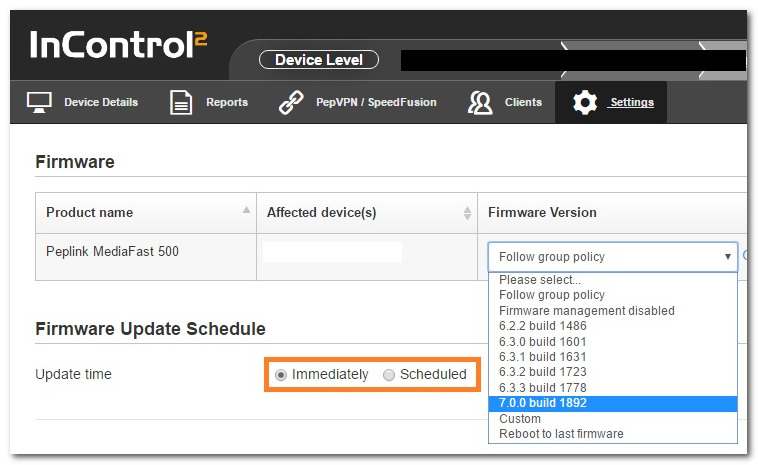

Step 2: Configure the upgrade parameters.

  • Select “Immediately” to begin the upgrade now or “Scheduled” to perform the upgrade at a later time.

  • Select the firmware version from the drop down list.

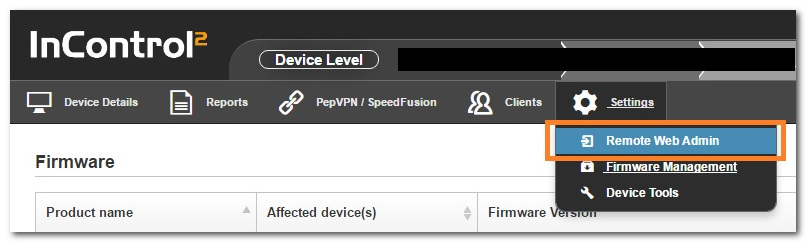

Step 3: We recommend verifying the configuration after device reboot.

  • Select the “Remote Web-Admin” to verify the configuration following the upgrade and device reboot.

Repeat steps 1 through 3 for the master router.

1 Like

Is there a way to group devices easier so I can create a slave and master group? Assign FW updates to Slave Group and then when they are complete apply FW updates to the Master Group?
