[Tutorial] OOBM via MAX Transit Serial Interface

[WeiMing]

Please find below the picture and screenshot, specifically for MAX Transit, connected to Cisco router Console Port. It should be the same on other devices with Serial/Console port.

1. Console Cable Pin Layout




2. Cross-check the RJ45-to-MAX Serial Connection Mapping




3. Connect to MAX Transit - Terminal Block Serial Pin




4. Connect to Cisco Console Port




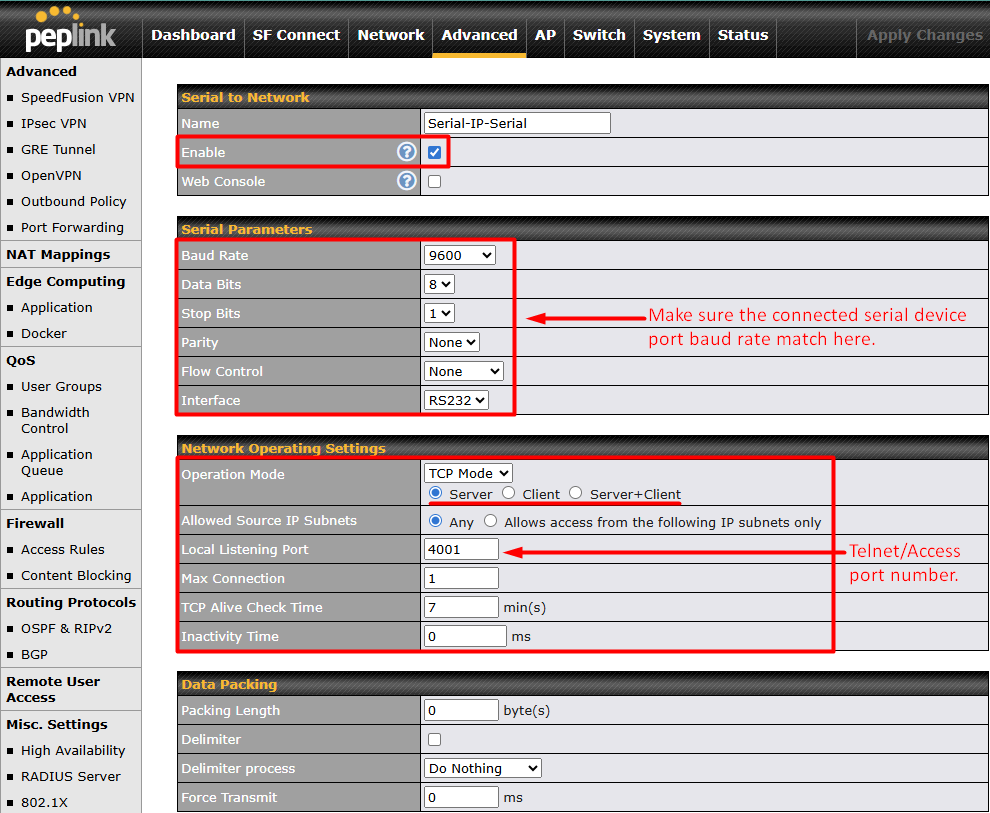

5. Enable MAX Transit - UART Settings




6. Configure the Telnet/Terminal Emulation Client




7. Access to Cisco CLI from the Telnet/Terminal Emulation Client (Preferably Non-Windows OS)




Note:
This configuration can be applied to other devices/instrument with serial (RS-232) interface/port, if you know the Pin-Layout and the Serial Parameters (Baud Rate, Data Bits, Stop Bits, Parity, Flow Control).

[spoiler]

BR1 mini have guide to console

[WeiMing]

Do you think the below article help?

The Definitive Guide to Pepwave MAX Serial Ports

Some Pepwave products come with serial ports, all of them are RS232 DTE. Here are the different form factors you will encounter, and how to connect them: - Terminal Block Found on the MAX Transit, BR1 ENT, HD2 Mini, and BR1 Slim. [image] These operate in DTE mode, with pinouts as printed on the router. - DB9 Serial Port The MAX BR1 M2M comes with an integrated DB9 Serial Port. This is a standard DB9 male serial connector operating in DTE mode, with the pinouts as follows: [image] - Serial Po…
