Unable to pass L2 (multiple VLANS) Traffic from SFH Solo installed in DC to Remote Pep

General
, ,
1

Successfully got my SFH running on Proxmox thanks to this post

Added a second NIC for the SFH LAN side connection. However, when the HUB LAN is connected to my upstream router at my core and a SF tunnel with L2 bridge is created from HUB to remote, I am unable to access VLANs from the HUB on the remote side.

Design:
IPs: 10.10.X.1/24
X=VLAN ID
CORE (VLAN 60,61,62,63)-> SHF LAN-> SHF WAN> SF Tunnel w/ L2 Bridging-> MAX PRO DUO WAN-> MAX PRO DUO LAN → LAN (VLAN 60,61,62,63)

2

Any assistance here will be largely appreciated

3

Is your LAN side Linux bridge set to be vlan aware?

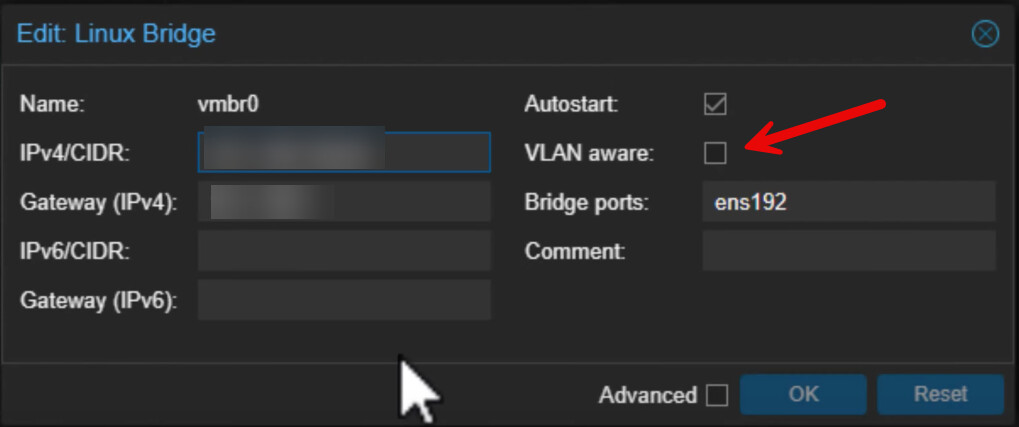

image1019×427 40.1 KB

1 Like
5

It’s set to vlan aware ok the Lan NIC. Do I need to do the same on the wan ?

6

Just on the proxmox bridge connected to the LAN of the Fusionhub.

1 Like
7

Martin,

Still having issues here, any additional suggestions ?

8

image1328×889 56.2 KB

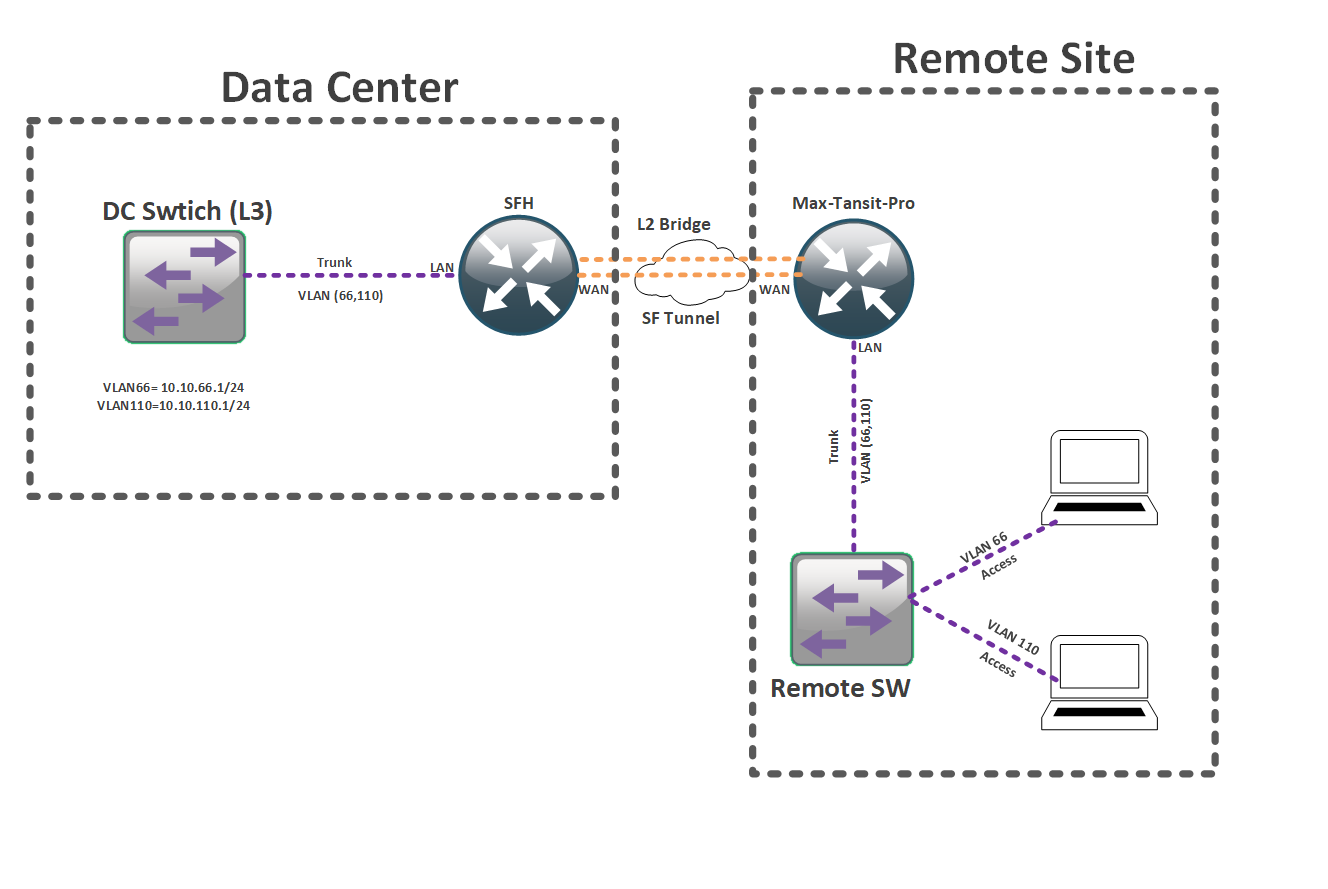

Adding a small diagram for reference
