ISSUE = Majority of Wi-fi clients will not join SSID#2 on two of the six Peplink AP’s.
However, all Wi-Fi clients can join:
- SSID#1 (on all the APs).
- SSID#2 on four of the six APs.

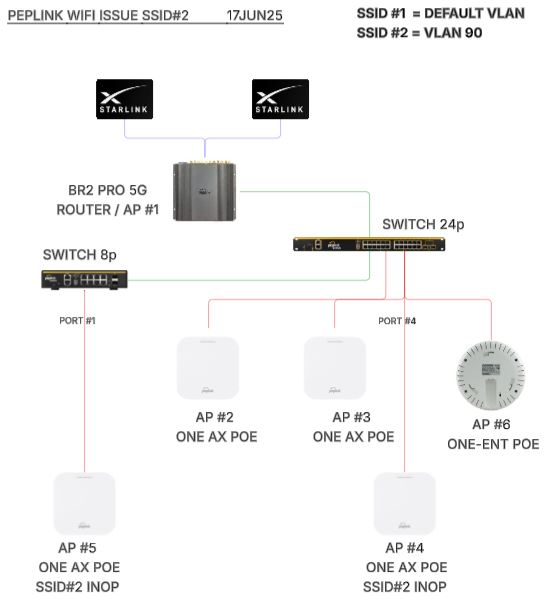

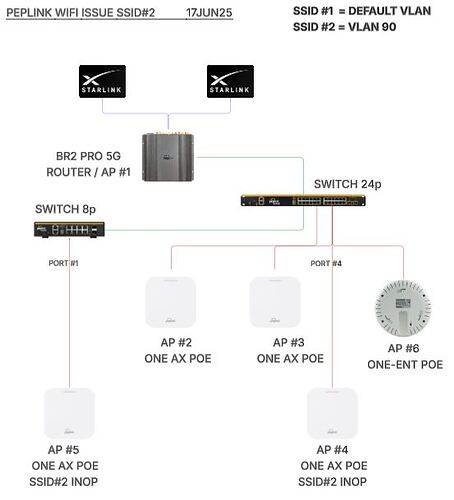

PEPLINK SYSTEM (All @ latest Firmware)
1) ROUTER = MAX BR2 PRO 5G (MAX-BR2-PRO-5GH-T-PRM HW V4)
SSID #1 = DEFAULT VLAN
SSID #2 = VLAN 90
2) ROOT SWITCH = Peplink SD Switch 24-Port (PSW-24-850W HW V2)
3) SWITCH #2 = Peplink SD Switch 8-Port Rugged (PSW-8-240W-RUG HW V1)
4) AP’S =
AP #1 = ROUTER BUILT IN AP
AP #2, #3, #4, #5 = AP ONE AX (APO-AX HW V1)
AP #6 = Peplink AP One Enterprise (APO-ENT HW V2)
Problematic “APO-AX #4” =connected to Port 5 on PEPLINK 24 port switch #4
Problematic “APO-AX #5” =connected to Port on PEPLINK 8 port switch2 #1
Note - all AP’s are connected to PEPLINK 24 port switch w/POE except AP#5. All switch port programming has been confirmed good.
NOTES
-
I was able to get one ipad to connect to SSID#2 on both of the problematic AP’s
-
FACTORY RESETS PERFORMED on all peplink devices last week.
-
All FW is up to date on all peplink devices.
PEPLINK WIFI NETWORK CONFIG SUMMARY
-
TWO STARLINK WAN CONNECTIONS
-
TWO SSID’S:
-
SSID #1 (DEFAULT VLAN) assigned to Starlink #1
(Router / Firewall / OUTBOUND POLICY, ENFORCE NETWORK TO WAN1) -
SSID #2 (VLAN 90 assigned to Starlink #2
(Router / Firewall / OUTBOUND POLICY, ENFORCE NETWORK TO WAN2)
TIA
