LAN1 - 192.168.50.1 main vlan - DHCP ON - intervlan on
LAN2 - 192.168.1.5 - DHCP OFF - intervlan on
I’m connected to the the surf soho with my laptop on LAN1 192.168.50.10.
I would like to see the camera 192.168.1.11 connecting to the soho surf with my pc.
The reason this isn’t working is because when the camera sees the request come from the foreign network (192.168.50.10) it sends its reply back to its gateway (192.168.1.1) which doesn’t know where 192.168.50.10 is either so sends it out the WAN.
Add a static route on the BR1 for 192.168.50.0/24 with a next hop of 192.168.1.5
The Surf SOHO is a router that knows how to send traffic between Subnets/VLANS.
In this new configuration, a laptop on VLAN1 requesting the camera on VLAN2 will know that it is not on its own 192.168.33.0 network so sends the traffic to its default gateway which is the SOHO. The soho then routes the traffic to the camera IP on VLAN2.
In the same way, when the camera goes to reply to the laptop it knows the laptop IP is not in its subnet so sends the traffic to its default gateway (the SOHO again) that does know how to get to the laptop and routes the traffic to the right device.
Can you ping 192.168.33.1 from your BR1?
Did you change any firewall settings or is it the default of any allowed on internal networks?

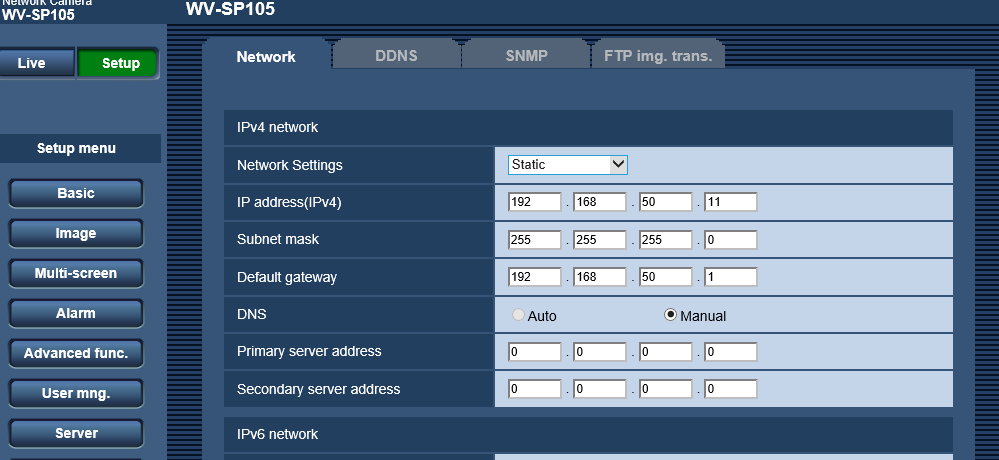

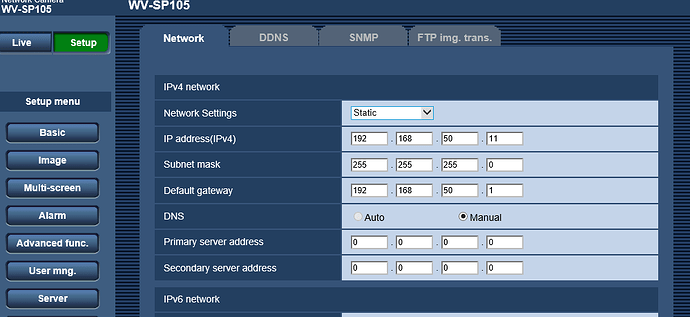

Does camera have a default gateway set to 192.168.50.1?
Ok back to basics - do the following for the sake of our sanity

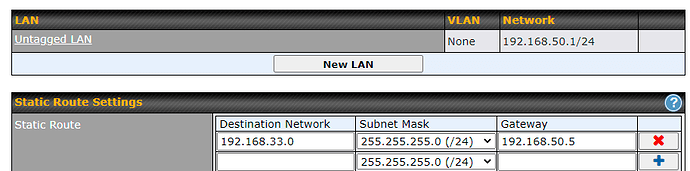

Check that the static route works from BR1 to SOHO.
From a device on the .50.x BR1 network ping both LAN IPs of the SOHO (192.168.33.1 & 192.168.50.5)
Can you access the web admin of the soho on 192.168.33.1 from the CCTV LAN?
Check the inter VLAN routing on the SOHO.
From a device on the 192.168.33.0 network ping the BR1 192.168.50.1, the SOHO 192.168.50.5 and the camera 192.168.50.11.
Can you access the web admin of the BR1 on 192.168.50.1 from the MAIN network?
Check application level issues. Try and access the web ui of the camera from the .33 main network. If that fails check its system log to see if there is reason given.
If these tests don’t shake out the cause I’ll ask you to run a continuous ping to the camera from a laptop on the MAIN network and then grab a network capture from the SOHO (on the support.cgi page)…
Thank you Martin for your patience.
It was my fault, now I can see the cctv camera.
I try to ask another solution.

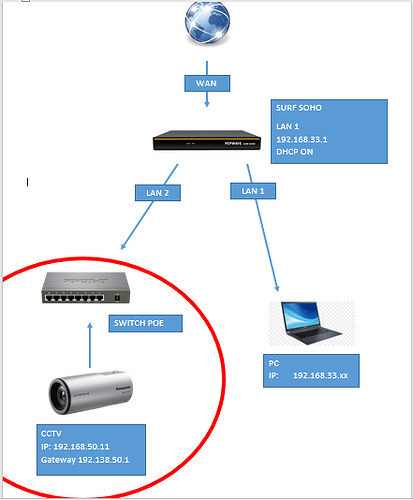

In the next situation, I can’t manage devices in red circle.

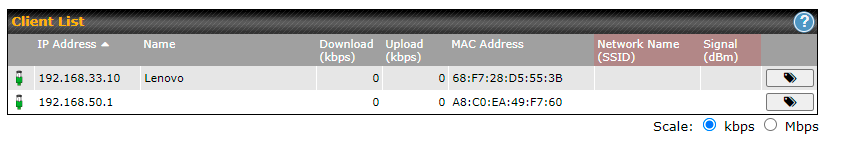

There is a device who give dhcp to camera but I can’t manage it.
I know that the camera has IP 192.168.50.11.
