SD switch and portbased 802.1X dynamic VLAN

Product Discussion Other Products
1

Dear,
We have a 24 ports SD switch with firmware 1.2.3 build 260, where I want to implement 802.1X VLAN assignment.
The authentication works fine, but the switch always put me in the default vlan.
This is the attributes my radius server return:
Tunnel-Type = VLAN,
Tunnel-Medium-Type = IEEE-802,
Tunnel-Private-Group-id = 12
When I look in the help for “Authentication Method”:
hlpdot1x

Anyone that have a clue what I do wrong?

Br.
Trygve Kristoffersen

2

Hi,
This is the port setting:

portdot1x
portdot1x827×347 7.6 KB

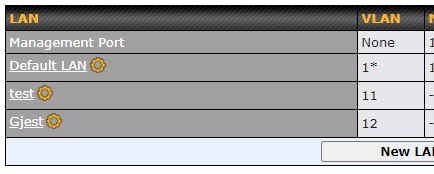

and the VLAN config:
vlandot1x
According to the help it should work: “Besides, access port accepts dynamic VLAN assignment from the server”
BR.
Trygve
