I have one Cisco router with current configuration
interface GigabitEthernet0/0/1.500
encapsulation dot1Q 500 native ---------------> native vlan
ip address 10.10.0.253 255.255.192.0
!
interface GigabitEthernet0/0/1.501
encapsulation dot1Q 501
ip address 10.11.0.253 255.255.0.0
interface GigabitEthernet0/0/1.503
encapsulation dot1Q 503
ip address 10.12.0.252 255.255.0.0
!
interface GigabitEthernet0/0/1.600
encapsulation dot1Q 600
ip address 10.16.0.253 255.255.192.0

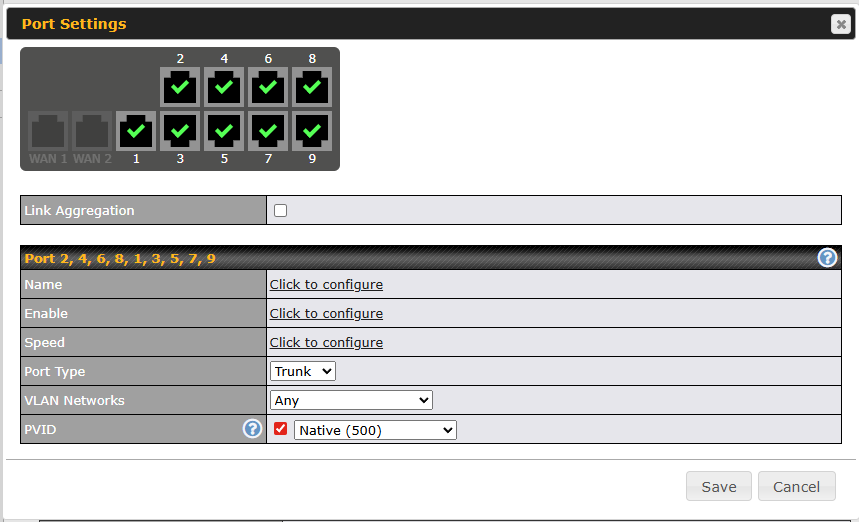

I need to replace this device with Piplink SDX loadbalancer, when i configured the port as trunk → custom , and select all vlans , the traffic not passed
any one can help how to configure native vlan same like Cisco router (VLAN 500 untagged ) and other vlans tagged.
