Peplink 2500 Management Interface Port


Peplink 2500 has Management Interface port so If we enable restrict admin access by management port only, how is work ? and how to assign for this interface ?

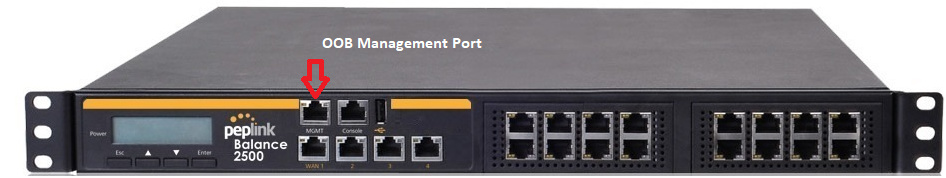

There is one physical management port (MGMT) for B2500.

If the “Redistricted admin access” enabled (by Management Port Only), you can only access the B2500 Webadmin/SSH by physically connect to the MGMT port. No network configuration require for the MGMT port as the MGMT port is running same network as LAN.


My LAN got virtual Interface vlan so which ip address that I need to access ?


You should able to access all the VLANs interface IP for the B2500 via the MGMT physical port.
