Outbound WAN POLYCI

Product Discussion Peplink Balance
1

I I want to configure 01 IP (1 computer) to go out with 1 WAN on Peplink 750, how configuration

2

Hi @nhngan2001,

There are 2 steps to make this happen, first, I’d recommend reserving the DHCP IP address for the MAC address of the PC see screen shot below - reserving 192.168.150.25:-

Click the Network Tab, then LAN Settings from the left menu and in this case, I’ve clicked on “Untagged LAN” to bring up the following window

image1244×1004 86 KB

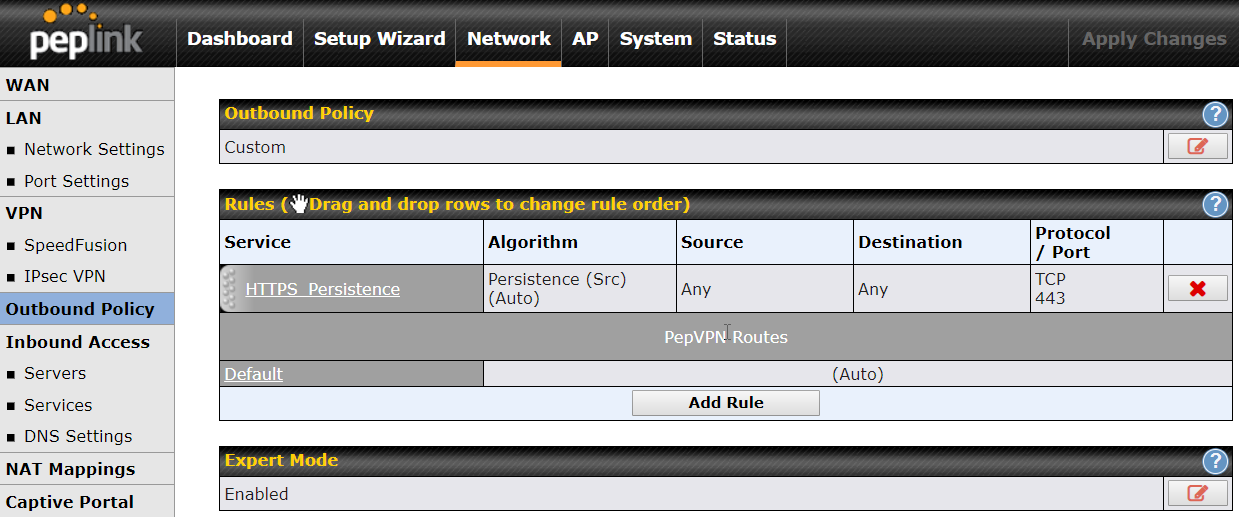

Once you have reserved the IP Address for the PC, you can then create the required outbound Policy - Network tab → Outbound Policy (from left menu) then click Add Rule:-

image1239×517 55.8 KB

Then with the settings below, I’m forcing the PC with IP Address 192.168.150.25 to use WAN 2 only.

image908×368 17 KB

Hope this helps,

Steve
