New Antenna for Selected Models
We are sharing an update that new antenna are introduced in selected cellular router models. This change is primarily in appearance and has no impact on overall performance. The new antenna variant also meets all compliance and performance standards.
Affected Models
- BR1 Pro 5G
- BR2 Pro
- BR1 Mini 5G
- BR1 Mini
New Cellular Antenna Specifications
| Frequency Band | Antenna Gain | Efficiency |
|---|---|---|
| 600–960 MHz | 1.62 dBi | >30% |
| 1710–2700 MHz | 3.72 dBi | >52% |
| 3400–4400 MHz | 2.72 dBi | >44% |
| 4800–6000 MHz | 3.27 dBi | >45% |
New Wi-Fi Antenna Specifications
| Frequency Band | Antenna Gain |
|---|---|
| 5.5GHz | 5dBi |
| 2.4GHz | 2.5dBi |
Additional Notes
- Both old and new antennas are compliant and interchangeable.
- No firmware or hardware configuration changes are required.
Visual Comparison

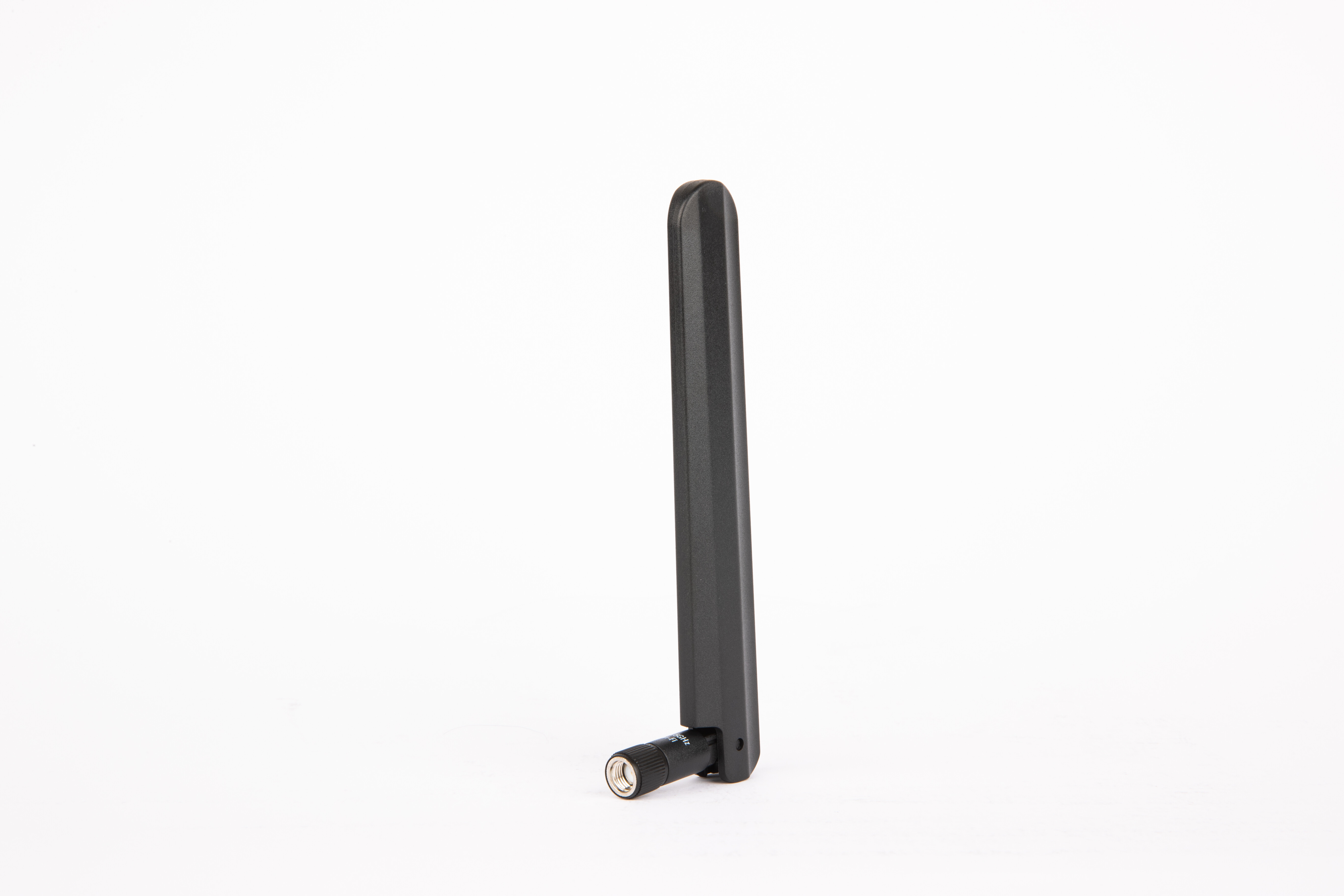

New Cellular Antenna:

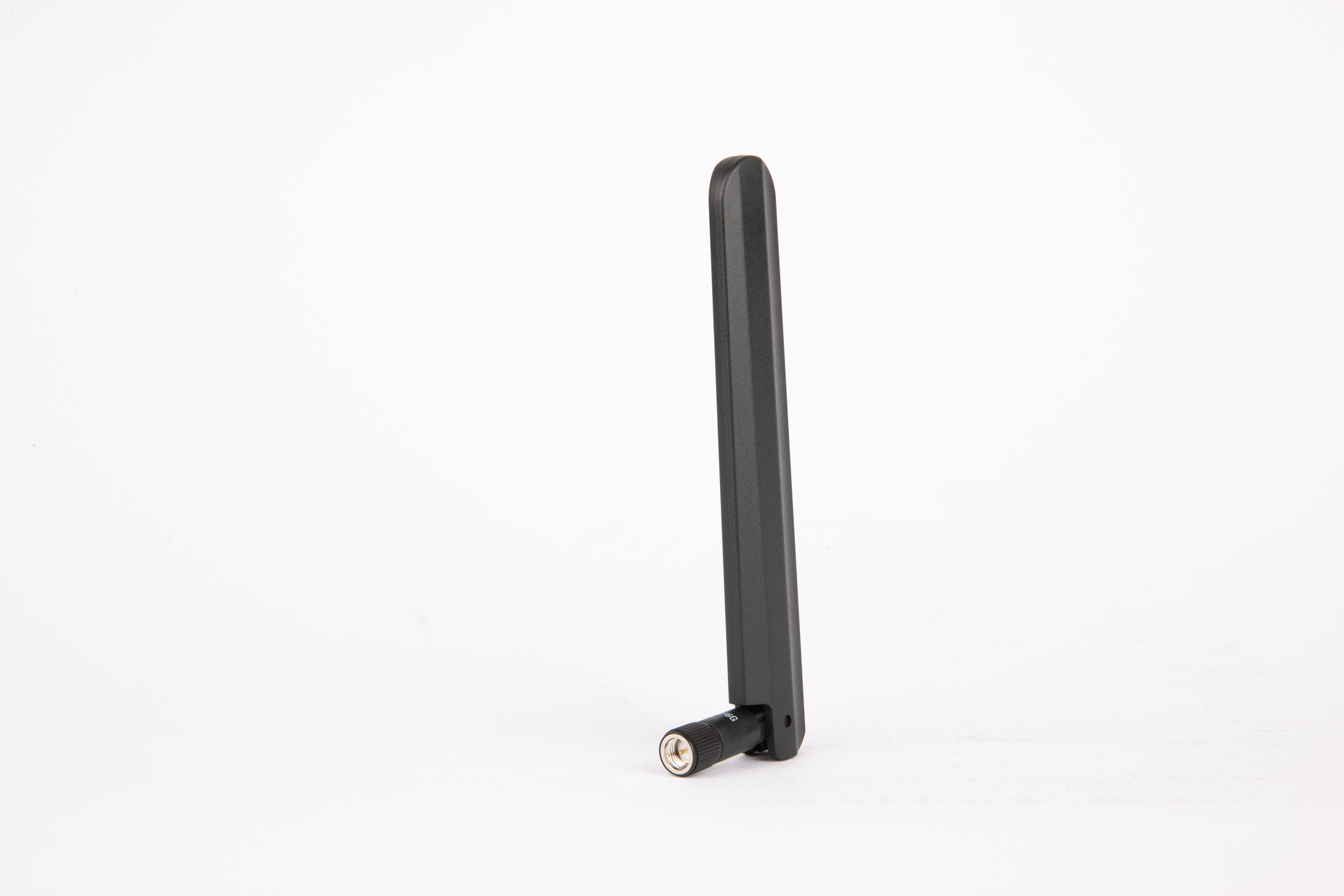

New Wi-Fi Antenna:

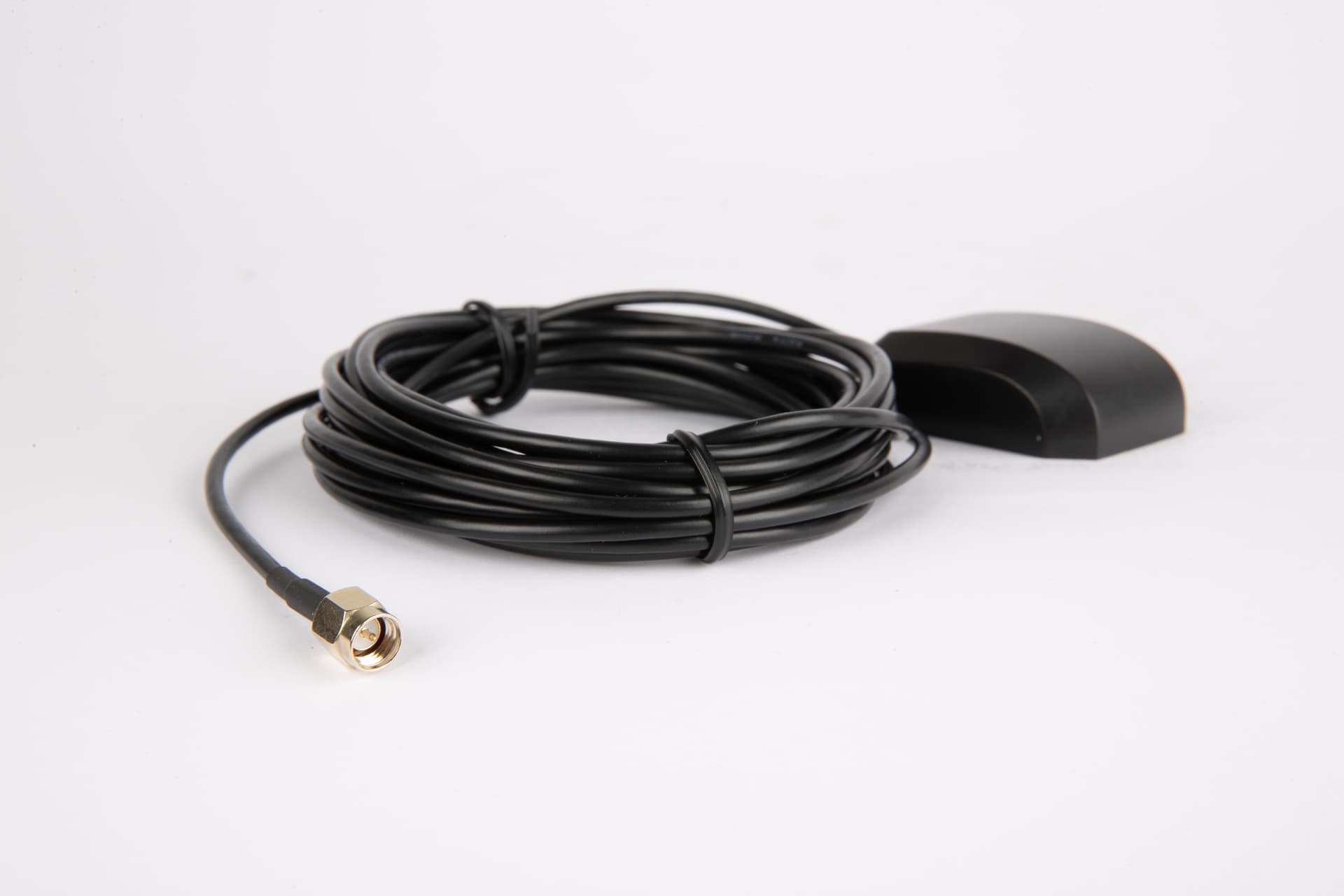

New GPS Antenna:
