MBX on 12V in a vehicle

We recently replaced a HD4 in a vehicle with an MBX, which is now causing some headache. When starting the vehicle, many strange things are happening, but it would seem the voltage drop is enough to trigger a reboot of the MBX, only it does not reboot properly. When asking Peplink support, powering the MBX from the 12V power available in the car requires a PMU. This was news to me, and we never had a similar issue with the old HD4. Has anyone else done a clever fix to this that does not require a PMU?

Any input would be appreciated.

If you have an unstable 12V, then you can try a DC-DC Step-Up-converter. If you run the MBX with a higher voltage it should not reboot/shutdown

Don’t forget, if you run it less then about 50V, you will not have PoE!

2 Likes

FWIW, I agree with @dennis.hofheinz . Our experience is that microprocessors do really flaky things when subjected to out-of-range low V such as typically occurs when a vehicle’s starter is engaged.

1 Like

So a step-up converter seemed to work. I just need to get something that will fit nicely in the vehicle.

I measured min/max during a start, and it only dropped to 10.51V, but I guess the old HD4 has a higher tolerance for this.

PoE is not important as it’s only meant for connectivity in and around the vehicle on the move.

2 Likes

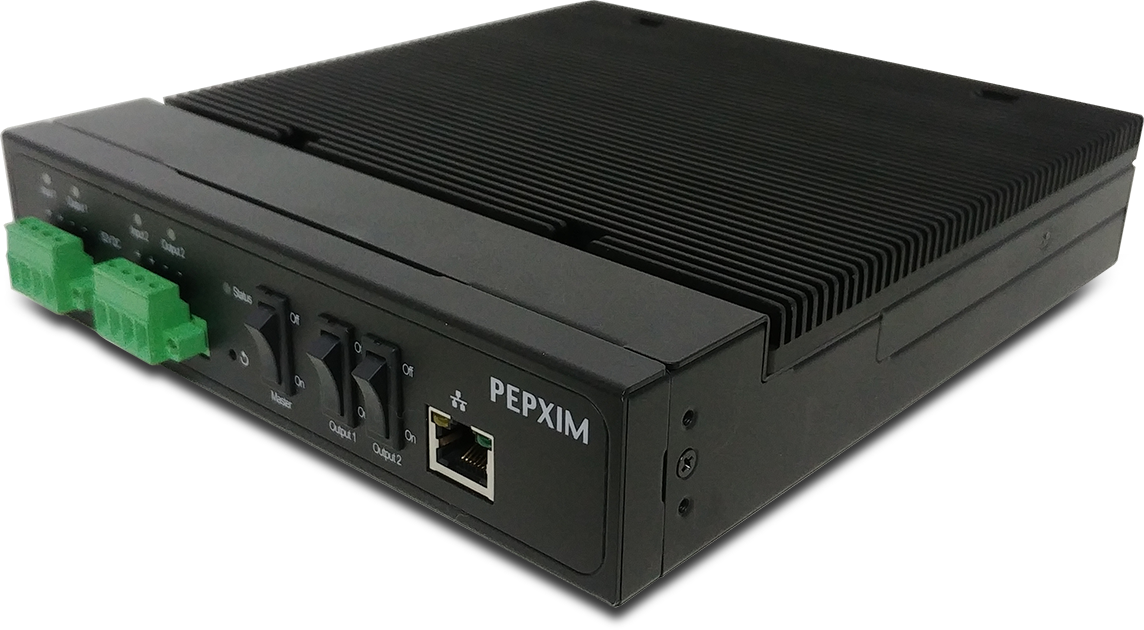

Peplink previously produced a terrific PMU (Power Management Unit)

The Peplink PMU range was discontinued for various reasons. We are optimistic that Peplink will develop a suitable replacement for the Peplink range of equipment.

In the interim, we have been using DC-DC equipment from Victron Energy.

It’s not the cheapest on the market, though it’s very reliable (zero failures in over a decade of using the range).

Happy to Help,
Marcus :slight_smile:

1 Like

Solved the issue by installing one of these:

https://www.tracopower.com/model/tmdc-60-2418

Thanks for the inputs.
