MAX BR1 Mini Mounting Hole location dimensions

[IPdisplays-MP]

Hi
Looking for the latest demensions for the mounting hole locations on the Max BR1 Mini 4G / 5G / Core - assumming they are the same…
Thx
M

[ChristopherSpitler]

MAX BR1 Mounting Hole location dimensions

Looking for a drawing of the mounting hole locations of the MAX BR1 router. I’m making a mounting plate and would need an accurate drawing since the mounting plate would be metal with PEM nuts. Thanks, Ed

[IPdisplays-MP]

Thanks for the link. I had found that. But it is not for the Mini.
The width dim is 136.8mm → this is a bit wider than the Mini’s overall dimension.

[ChristopherSpitler]

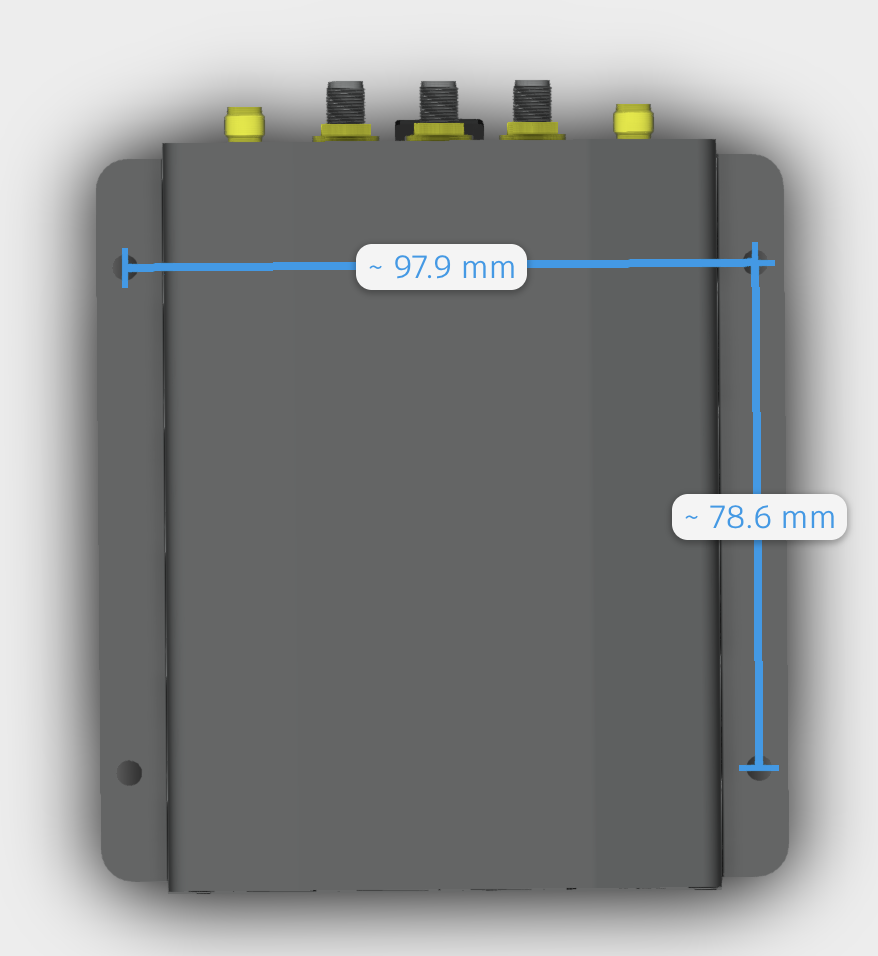

Sorry about that! Here is a correct diagram:
