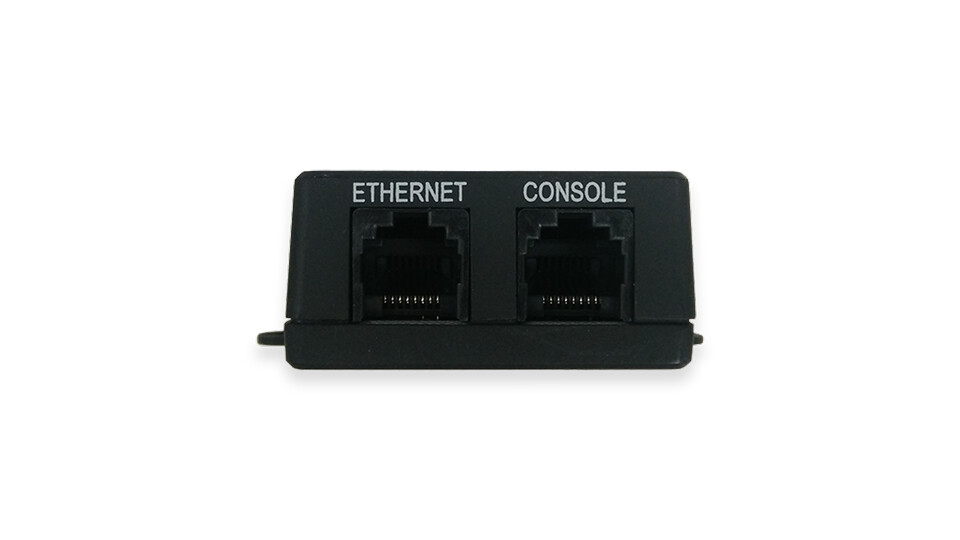

I’m working on transitioning from 4G MAX BR1 Mini to the latest 5G model. I can’t find any information on the RJ45 Console/UART port the 4G models had. Was this functionality completely removed in 5G units?
Cheers!
Hi, @admiralmaggie
Welcome to community…
Just to be sure… Are you asking about acw-411?
I can be wrong… but I believe that Peplink remove from the BR1mini5G the UART…
because… the old br1mini4g have just 100mbps rj45 and Peplink use the extra pins to allow UART signals pass on those pins.

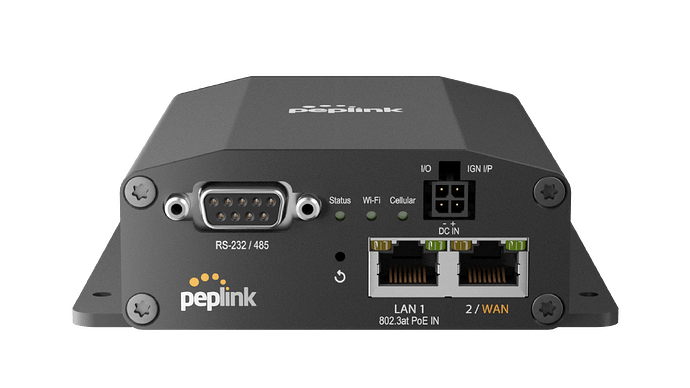

Your option now it is the br1-mini-m2m devices.
Look at:
Those device are only 4G (LTE CAT-4)
1 Like
Yes! You’re right, those ports are now 1gb. Thank you very much for the reply and suggestions.
