Firewall config to allow "ic2 access only" on the ESIM WAN connection?

Product Discussion
,
1

I’m setting up my first ESIM cellular connection this week for the sole purpose of troubleshooting an unreliable Starlink & suspected faulty HD1 Dome pro router.

Questions:

  1. Would the simplest and most reliable procedure be as follows:

“ADVANCED” / “OUTBOUND POLICY” / “ADD RULE” /

“SOURCE” = ROUTER IP (192.168.50.1)
“DESTINATION” = “DOMAIN NAME” = ac1.peplink.com ac2.peplink.com /

“ALGORITHM” = ‘ENFORCED’ = ‘WAN:CELLULAR’

  1. Has a similar ‘one click’ setting for this config been added to the ‘feature request list’ yet? (If not, I will submit it).

TIA

2

A simple approach would be to enable bandwidth metering , and set the cellular to reserve for management only and set a 1mb limit.

3

Can you share your method settings?

4

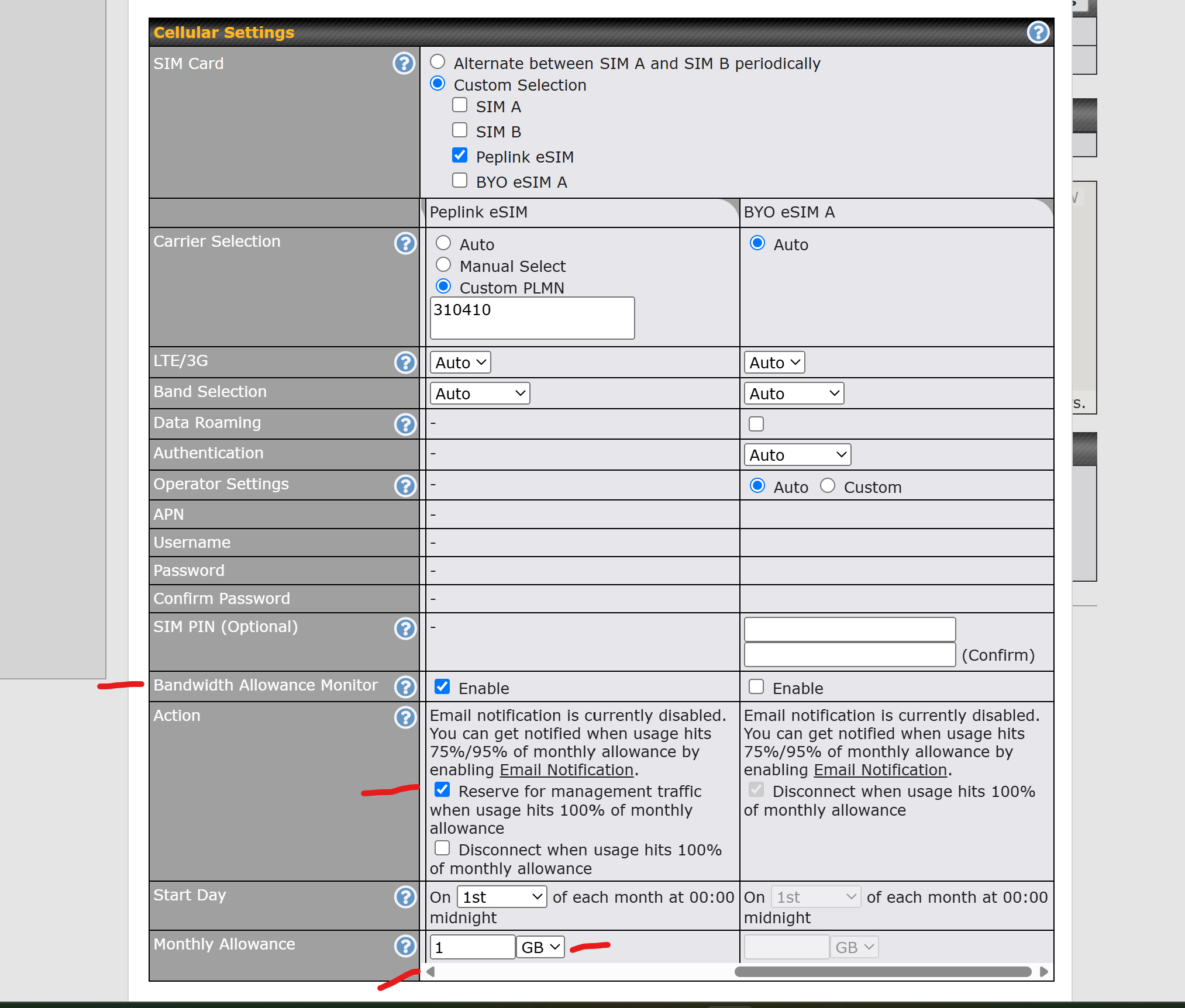

Set the values on the wan of your choice to the values you want.
I have mine set for 1gb , you may want to set yours to 1mb.

image2026×1724 302 KB

2 Likes
5

So if I have few cellular wans, on one of them i can use your settings and this wan will work only for a management, while others WANs will work like usually?

This setup work only for incontrol2 access or also for access from external connection via this WAN to 192.168.50.1?

6

Reserve for management will only allow ic2 traffic , i.e. no user traffic.

Ic2 will use any wan that is available based on priority level.

1 Like
