Can set Speed Fusion VPN route Internet traffic and broadcast remote LAN network to OSPF?


#1

Hi All

Can set Speed Fusion VPN route Internet traffic and broadcast remote LAN network to OSPF?

Should I enable LAN as WAN3 for High Availability feature?

I think that PepWav MAX / Peplink 210 set Outbound Policy to enforced all traffic to Peplink 580. Right ?

Regards
PL


#2

Hello,

Yes if you enable OSPF on the B580 the MAX and 210 will learn the routes in area 0. To force general internet traffic over the VPN link you should create an Outbound policy on the MAX and B210 using Priority or Enforced and select the VPN interface.

No sure what you mean about WAN3 and HA, can you explain ?

-Jonan


#3

Hi Jonan

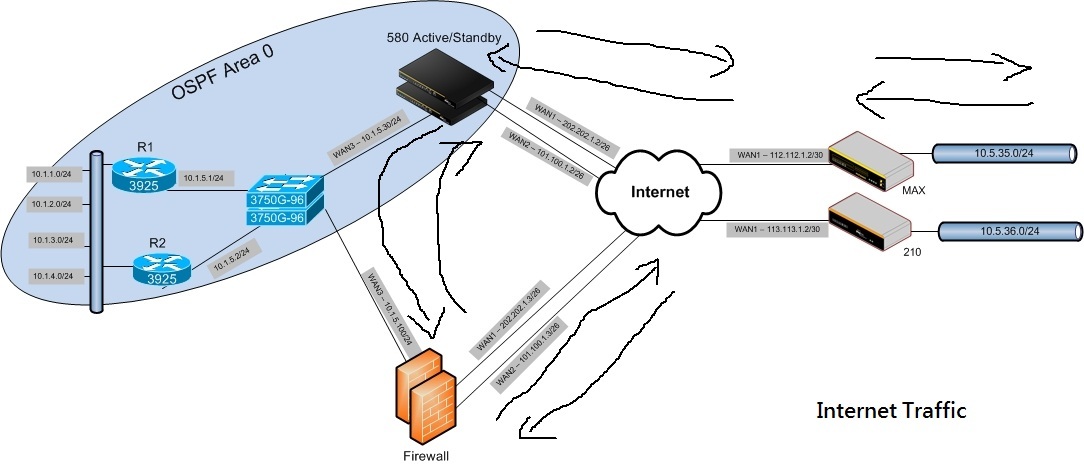

I have enabled High Availability (WAN3) and need B580 route internet traffic to FW (10.1.5.100) , route internal traffic to R1 / R2 . Is it work? How can do that?

PL





#4

Hello,

The routes to networks behind R1 and R2 will be learned over OSPF. HA mode is for protection against unit failure such as the following example:

If your firewall just another internet link then it should be connected to one of the WAN ports and failover with other WAN ports managed
using the Outbound Policy.

-Jonan
