APoneACmini mounting orientation

My site has 3 levels and is laid out horizontally wide enough to require 3 APs to cover. I have the APs laying flat but was considering mounting them vertically. Do they broadcast and receive equally in both planes?

Please refer to the radiation pattern below.

1 Like

I am getting an error referencing the radiation pattern. Says I don’t have access.

Here you go.

radiation_patterns_apo_ac_mini.pdf (198.4 KB)

1 Like


Wow! Are you folks using an isotropic antenna?

This is valuable information. The pattern is greatly different than we had expected!


1 Like

AP One AC Mini is using inbuilt Omni Directional antenna.

1 Like

@TK_Liew This is great, thank you so much for these pattern plots! Awesome service I must say! Can you tell me for the AC_Mini horizontal plots what the side with the ethernet and power port is? This is important, as one side has a big null at about 95 degrees.

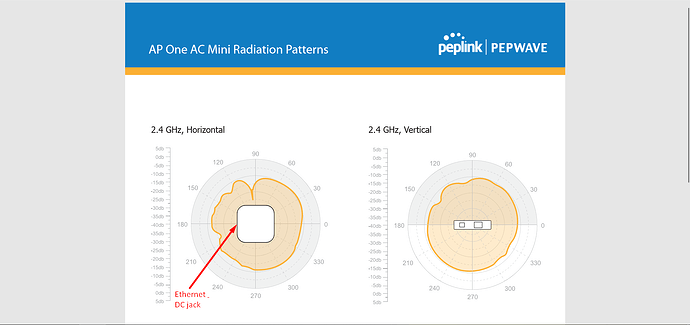

@barthold, here you go.


Awesome, thank you!

1 Like
