Would any one have a drawing showing the mounting holes for the MAX BR2 Pro 5G. I could not find one in the info section for the modem.
Hi Matthew,

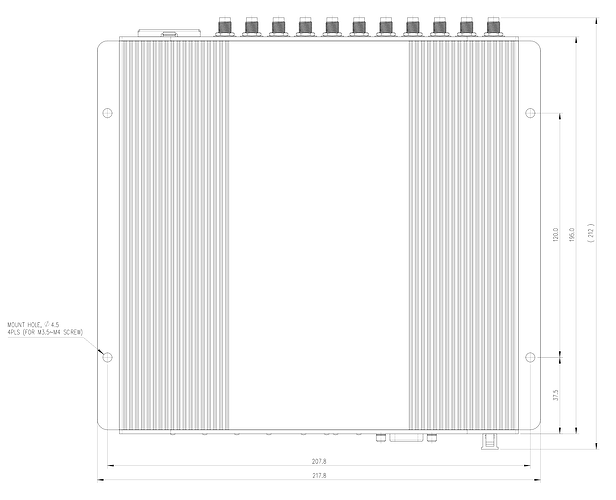

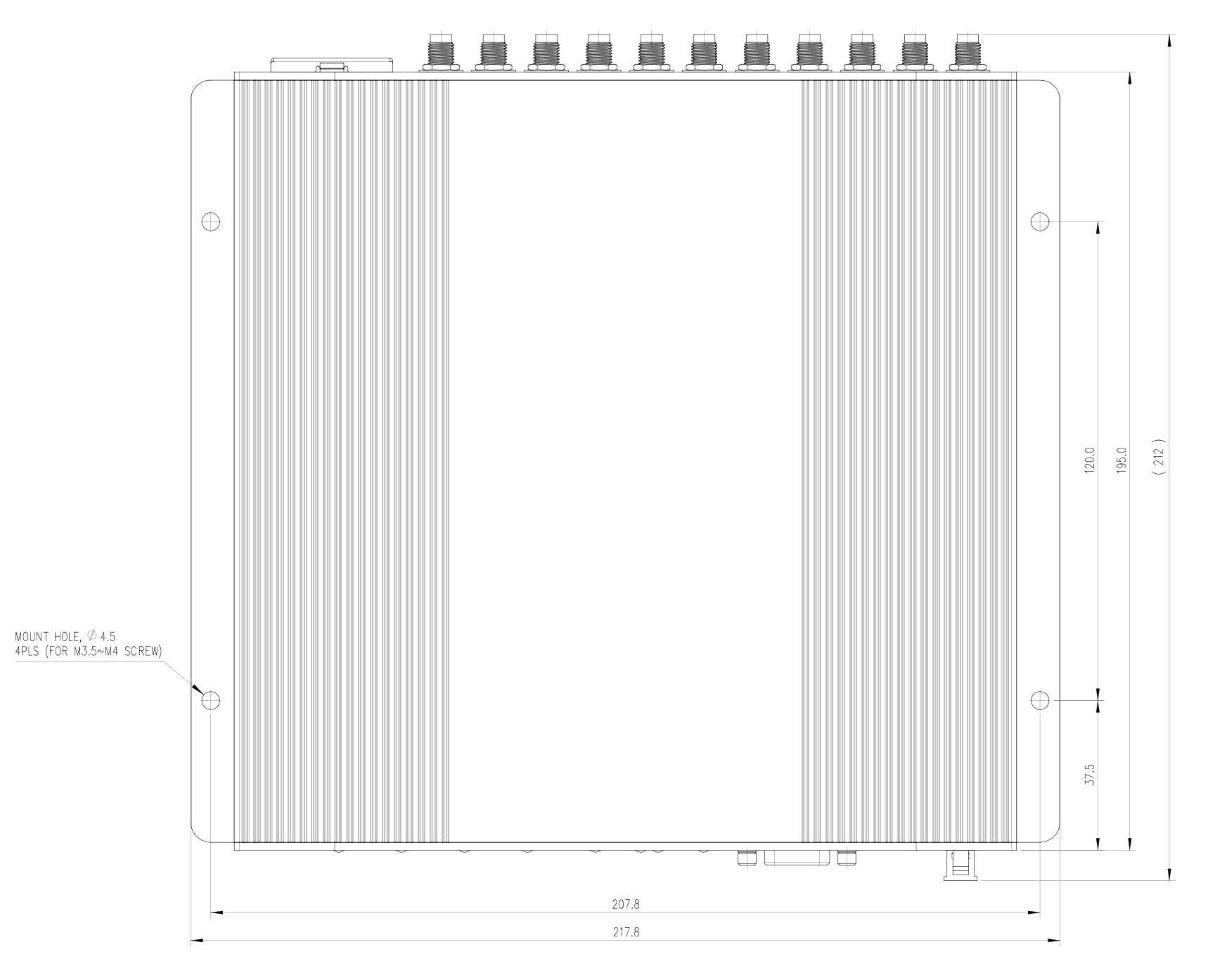

please see the picture below. Dimensions are in mm.
