Device Connector Rugged Mounting Hole Spacing

Does anyone have a drawing of the Device Connector Rugged (DCS-RUG) mounting holes with spacing between the holes. I am working with a customer to integrate installation on an assembly line for an IoT solution.

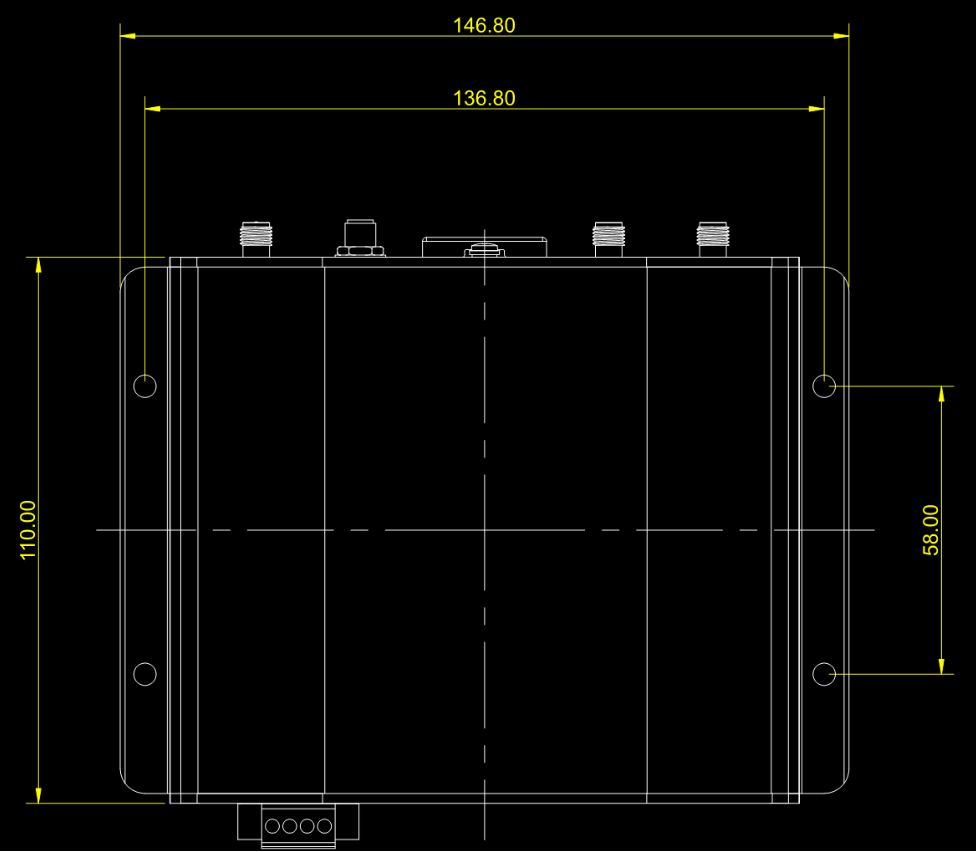

Here you go. This is a drawing of MAX BR1-Classic but the mounting hole is same with Device Connector Rugged.

1 Like
